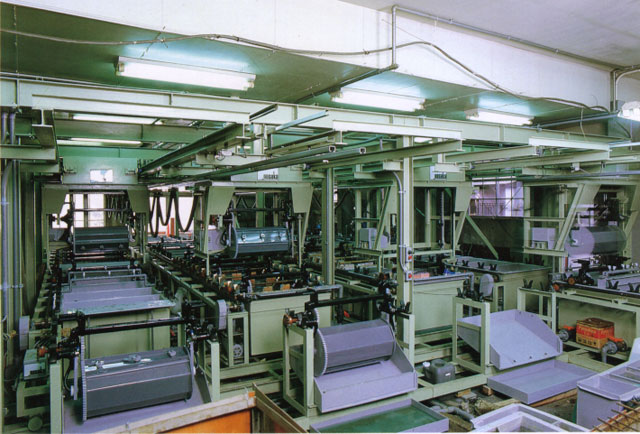

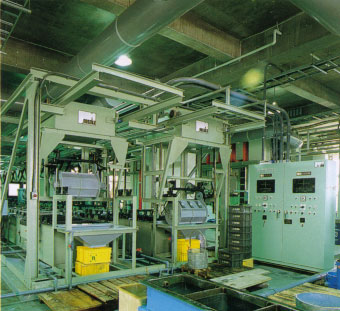

Opellet type fully automatic plating equipment (Barrel type)

This is a fully automatic rotary plating device that upgrades the conventional gate type carrier type to the opellet type. Because it is computer controlled by the line controller "PP-427"

1. You can freely control the carrier running speed (establishment of a rational production cycle)
2. Priority function to prevent carrier collision
3. Carrier stop position shift automatic correction function
Many functions have been added. further,
4. Draining drive (can be stopped at any place on the tank and the barrel can be rotated by the required number of revolutions)
5. Barrel drive (continuously variable transmission drive of the barrel can be performed at any location = option)
Such new functions have been well received in the precision plating field.
In addition, since it is a ceiling running system, it requires less installation space than a gate-type running, and it is easier to perform external work such as refilling the electrode plate.
● Since the barrel is drilled with an NC drilling machine, it is possible to drill holes of 1 m / m or less, and the hole pitch accuracy is 1/100 mm.
● Ultra-high molecular weight polyethylene is used for the shaft (boss) that fixes the barrel to the barrel hanger, and the coefficient of friction is low, resulting in much less wear than before.

Four major functions of opellet and barrel type.

1. Speed ​​control function
High-speed driving and low-speed driving are at your disposal. Therefore, a rational production cycle can be established without time loss.

2. Soft stop function
Soft stop function for smooth deceleration when stopping even when driving at high speed.

3. Stop position shift automatic correction function
Even if the carrier shifts from the stop position, the carrier correction function will automatically work and the carrier will return to the position where it should stop properly.

4. Collision prevention function
Since each carrier is given a priority position, there is no need to worry about collisions.
