ZENET (Lifting type machine)MDtype・OPtype】

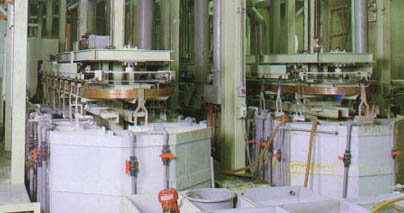

Elevator type fully automatic plating equipment. It is a mechanism that feeds hangers by traverse drive by rack and pinion, operation is accurate, and hook movement is smooth. If necessary, it is possible to incorporate an unnecessary tank jump selection mechanism and a selection mechanism by horizontal movement in the tank. In addition, since the corners are moved by a rotating plate with a unique adjustment, the hanger can be set to any position, making full use of the corner space.
MD type can be selected for the standard model, and OP type can be selected for the large-scale line. The MD type is a motor drive system, and the OP type is a hydraulic system. The operation at the start and stop is extremely soft, and there is almost no noise.

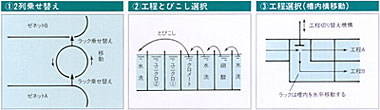

1. Two-row transfer.
It is a mechanism that automatically transfers the rack from Zenetto A to Zenetto B. It is effective when two or more Zenettos are arranged in parallel and used as the same plating line.
2. Select process.
Chromate tanks, unichrome tanks, and black chromate tanks arranged in series on the same line are selected according to the specifications, and the rack jumps into unnecessary tanks.
3. Process selection. (horizontal movement in the tank)
It is a mechanism devised so that post-treatment processes such as chromate and UNIQLO are arranged in parallel and the rack is moved horizontally in the water washing tank after plating to achieve the specified process.
